Label separator remover machine
This machine was main used to waste label separator remover, most of the labels is PVC labels.label remover machine was one of the necessary machines in the waste plastic bottle recycling washing system.it removes label efficiency above 95%.It can be used individually.
Our company label remover machine advantage:
1.Move Blades made by cemented carbide .Fixed blade made D-2,the blade can use for a long time.
2.Blades fixed by screws on the rotor, easy to adjust and change.
3.Blades and friction gap can be automatically adjusted according to the size of bottles which achieving best label-peeling effect.
4.Use the seal ball bearing with HRB brand.
5.Bearing house installed outside the machine no dirty goes inside.
6.Machine barrel was made by solid frame; there is visual window on the top easy to check inside and cleaning
7.Machine bottom with small hole to drain out vestigital water in bottles.
8.we also have water type label remover machine.
Machine parameter for label remover machine:
Model | LMD-7.5 | LMD-11 | LMD-15 | LMD-22 | LMD-30 |
Main motor power | 7.5KW | 11KW | 15KW | 22KW | 30KW |
Label suction fan power | 4KW | 4KW+4KW | 4KW+4KW | 4KW+4KW | 4KW+4KW |
Label scrape power | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
Capacity | 500kg/hr | 1000kg/hr | 1500kg/hr | 2000kg/hr | 3000kg/hr |
Rotor diameter | 600mm | 600mm | 600mm | 600mm | 710mm |
Rotor length | 3500mm | 4500mm | 4500mm | 4500mm | 6000mm |
Label separation rate | >95% | >95% | >95% | >95% | >95% |
Machine size (L*W*H) | 4x1x1.8m | 5x1x1.8m | 5x1x1.8m | 5x1x1.8m | 6.3x1x2.8m |
Machine weight | 2000kgs | 2800kgs | 2800kgs | 2800kgs | 4000kgs |

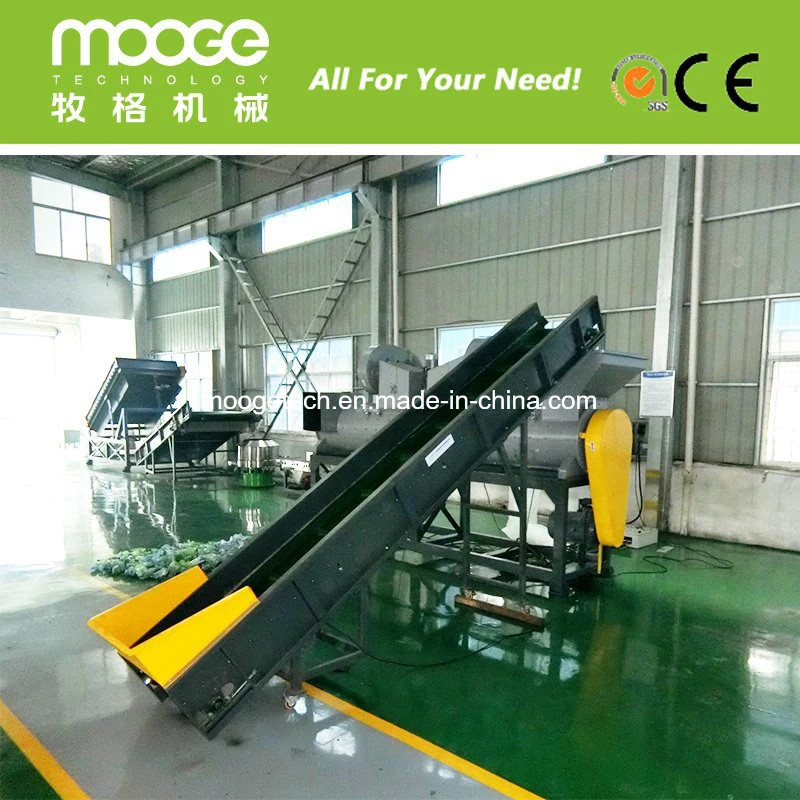

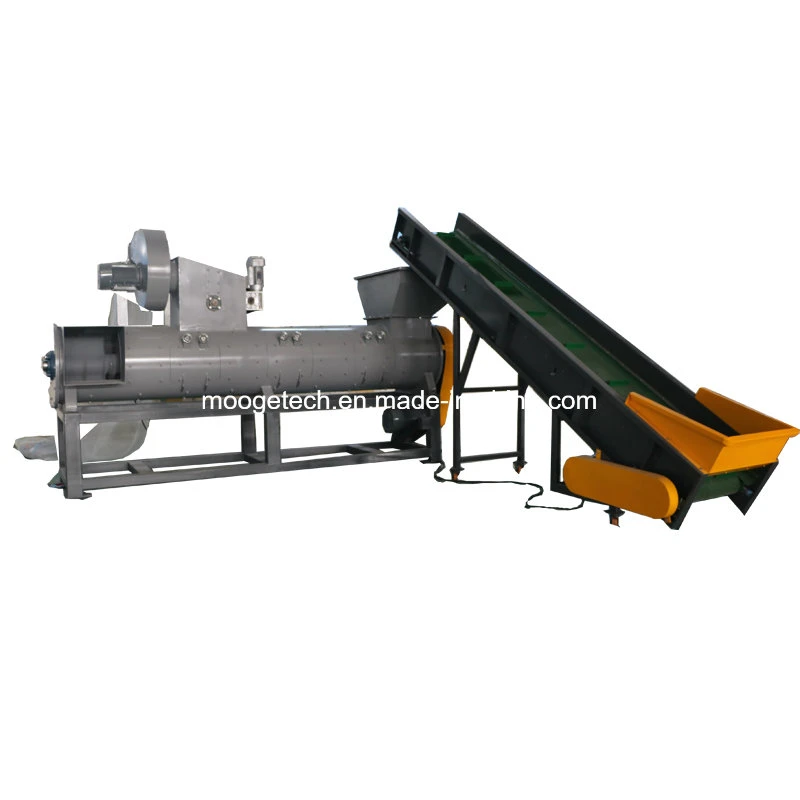

label remover machine photos
Our services
Part A: Service before sales
24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools ( Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
Professionally and patiently introduction, details pictures and working video to show machine.
Part B: Service on sales
Test and runinng machine,inspect machine for customer
Send the machine photos and running video to customer before shipping.
Part C: Service after sales
24 hours online to solve any problem.
Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
If you interesting in our company machine,please contact to me with free.
our company factory nearby shanghai,it roughly 3 hours driving from airport to our factory.
call me :+ 86 186 524 30076
