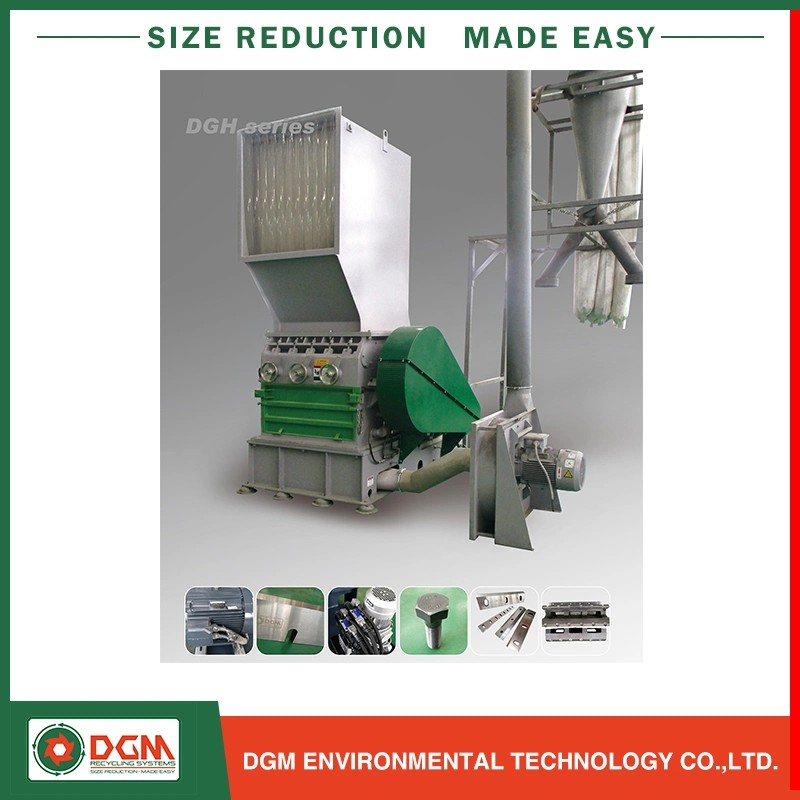

The DGH Heavy Duty Granulator has a centrally hinged two-piece cutting chamber with a robust welded steel construction, with the upper and lower sections of the housing meeting horizontally. Reversible stator knives with double cutting edges are fitted as single elements to the lower section of the housing, allowing multiple re-sharpening and adjustment of the stator knives. There is a hinged screen cradle and hinged door for easy screen access.
The rotor is a heavy duty paddle type design with knife cover plates to protect the blades when processing abrasive applications. The knife mounting bolts are screwed into the mounting plates as opposed to the rotor. All knives are manufactured from chrome nickel tool steel as standard, but when processing applications that are particularly abrasive the DGH granulators can be fitted with a specially designed wear resistant rotor utilizing wear resistant steel parts and hardox facing.
The v-cut cutting geometry offers distinct advantages over other rotor designs, including higher throughput with reduced power consumption, better quality cut, and lower noise levels. Specially designed knife setting jig means that the knives can be adjusted from outside the machine, significantly reducing the downtime required to change/set knives.
The base frame has a solid welded construction with anti-vibration rubber feet to reduce vibration and noise. The drive motor is mounted on tension rails to allow easy adjustment of the V-belt tension. Integrated suction trough for material discharge. Specially designed hopper with 3 sets of curtains to prevent material flybacks. Integrated rundown safety device prevents access to the rotor until it has come to a complete stop. A safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.
|Cutting Chamber Dimensions||mm||516*640||636*590||790*695||985*590|
|Cutting Chamber Dimensions||mm||985*800||1150*915||1570*915||1960*915|
|Motor Power||kw||75-110||110-160||132-200||160-200 *2|
- Deflector wedge - V-cut technology
- Heavy duty bearings
- Oversized external bearing housings
- Knives are externally adjustable
- Robust welded steel construction
- Wide choice of rotor variations
- Electrical hydraulic control - to open housing
- Electrical hydraulic control - to open screen cradle
- Replaceable wear plates
- Amp meter control
- Extra flywheel
- Double infeed hopper
- Roller feeder
- Mounted screw feeders in hopper Winding protection
- Metal detector
- Metal separator
- Bespoke colour scheme
- Increased motor drive
- ALTERNATIVE FUELS (RDF/SRF)
- DOMESTIC & COMMERCIAL WASTE
