Coal/clay/fertilizer granulator ball granulator double roller press without drying granulator

 Coal/Clay/Fertilizer Granulator Ball Granulator Double Roller Press Granulator without Drying 1.Product Description of Double Roller Press Granulator Product Name Double roller  granulatorSuitable for Agricultural, Mining, Chemical ColorCustomizable Double roller press granulator&nbs

Featured Products

 Coal/Clay/Fertilizer Granulator Ball Granulator Double Roller Press Granulator without Drying

1.Product Description of Double Roller Press Granulator

Product Name
Double roller  granulator
Suitable for
Agricultural, Mining, Chemical
Color
Customizable

Double roller press granulator  is the key equipment for compound fertilizer granulation. It uses squeezing principle to form fertilizer particles with diameters of 3.5-10mm in one time. The shape and size of the ball socket on the roller shell can be customized by customer. Dry type fertilizer Double Roller Granulator has higher granulating ratio of over 95%. With no drying technology, materials will be pressed into ball shape to meet the requirements of compound fertilizer production .

Coal/Clay/Fertilizer Granulator Ball Granulator Double Roller Press Granulator Without Drying
Coal/Clay/Fertilizer Granulator Ball Granulator Double Roller Press Granulator Without Drying

Coal/Clay/Fertilizer Granulator Ball Granulator Double Roller Press Granulator Without Drying

Coal/Clay/Fertilizer Granulator Ball Granulator Double Roller Press Granulator Without Drying

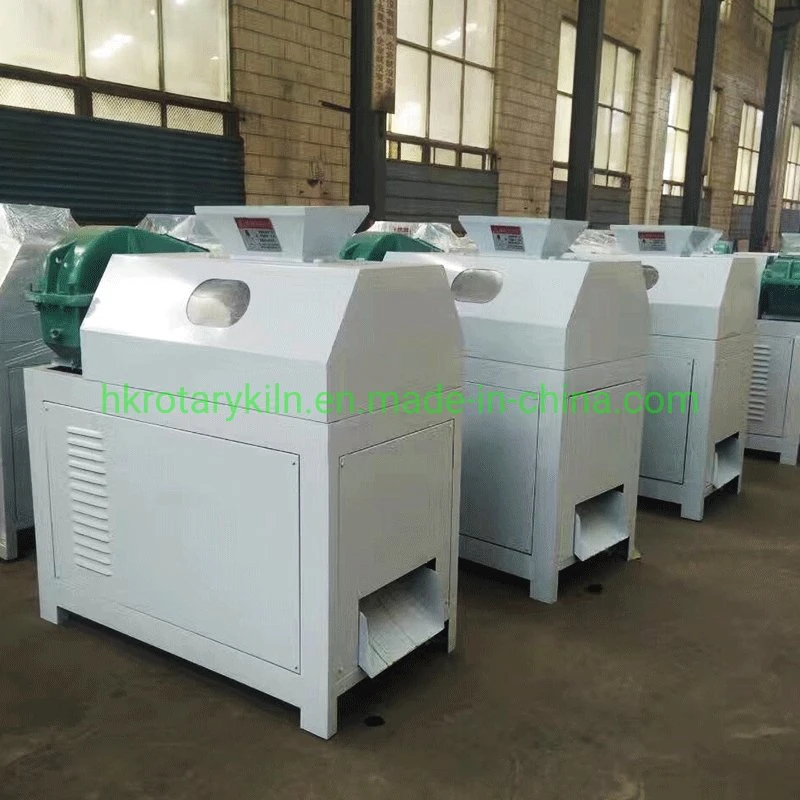

2. Features and Factory Pictures of Double Roller Press Granulator

1.Double roller press granulator is without drying process, room temperature granulation, a molding , less investment, quick effect, good economic returns.
2. Compound fertilizer on roller extruding and granulating machine power of small reliable operation, no waste discharge, stable operation, convenient maintenance, process layout is reasonable, advanced technology, low production cost.
3. Double roller press granulator can be used for extensive applicability of the raw materials, the granulation of compound fertilizer, medicine, chemical fertilizer, feed, coal. metallurgy and other raw materials, can produce various concentrations and types (including organic fertilizer, inorganic fertilizer, bio-organic fertilizer, magnetic fertilizer etc.)compound fertilizer.
4.Double roller press granulator is used for granulating raw material: earth material, carbonate ammonium sulfate, compound fertilizer,NPK fertilizer,Mineral material,Bentonite etc...material to fill the gap,and press to granules directly. Is the national environment protection technology promotion project.

Coal/Clay/Fertilizer Granulator Ball Granulator Double Roller Press Granulator Without Drying

Coal/Clay/Fertilizer Granulator Ball Granulator Double Roller Press Granulator Without Drying
Coal/Clay/Fertilizer Granulator Ball Granulator Double Roller Press Granulator Without Drying

3.Size Information of Double Roller Granulator

TypeDZJ-1.0DZJ-2.0DZJ-3.0DZJ-4.0DZJ-1.0
DZJ-2.0

Productivity
(t/h)
1~1.51.5~2.52~33~41~21.5~2.5
Power(KW)1518.522
30

1518.5
Pressure roller specification(mm)Φ150x220Φ150X300Φ186X300Φ300X300Φ150X220Φ150X300
Feed granularity
(mm)
≤0.5≤0.5≤0.5≤0.5≤0.5≤0.5
Product specifications(mm)Φ2.5~Φ10Φ2.5~Φ10Φ2.5~Φ20Φ2.5~Φ30Φ2.5~Φ10
Φ2.5~Φ20

Reducer modelZQH350ZQH400ZQH400ZQH500dedicated
dedicated

Material moisture(%)2%~5%2%~5%2%~5%2%~5%2%~5%
2%~5%


4.Company Introduction

Henan Hongke Heavy Machinery Co., Ltd. is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing.
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on, such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln, metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill,stone production line, mineral processing equipment and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to cooperating with you !


Coal/Clay/Fertilizer Granulator Ball Granulator Double Roller Press Granulator Without Drying
Coal/Clay/Fertilizer Granulator Ball Granulator Double Roller Press Granulator Without Drying

5.FAQ

1. What is the minium order quantity?
One set.
2.How long is the warranty period?
One year. Wearing parts are excluded.
3. What is the after-service of your company?
We can provide the customers foudation drawing, installation service, work training as well as other service according to the
customer's requirements.
4.How long is the delivery time?
About 15 days after we receive the payment.
5. What are the payment terms?
T/T, L/C are the best,
it can be adjustable according to different situations.
--------------------------------------------------------------------------------------
Kindly Note:
1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please Inform us the follow figures:
1). What is the raw material?
2). What is the capacity per hour do you need?

Upon we got your message we shall give you our favorable offer in short time.
